Affordability Meets High-Quality

Zebras feature-rich, competitively priced GC420T desktop printer brings Zebra quality, durability and reliable performance to many low to medium volume, direct thermal and thermal transfer printing applications.

Standard Features

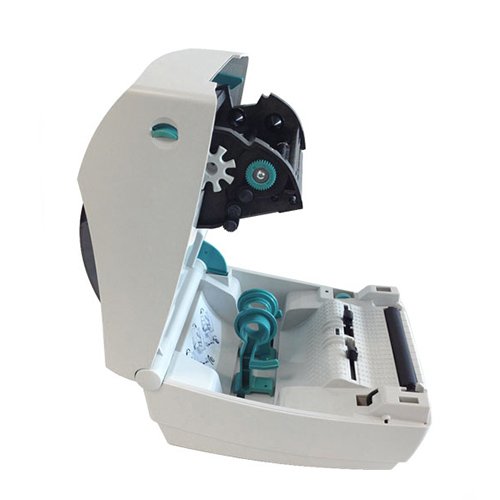

Standard Features Print method: direct thermal/thermal transfer EPL and ZPL programming languages standard 32 bit RISC processor Quick and easy ribbon loading system Construction: ABS double-walled casing OpenACCESS™ design
Printer Specifications
Maximum Print Length 39” (991 mm) maximum
Maximum Print Speed 4 (102 mm)/sec
Media Sensors Reflective Transmissive
Memory Standard: 8 MB SDRAM; 8 MB Flash
Print Width 4.09 (104 mm) maximum
Resolution 203 dpi (8 dots/mm)
Media Characteristics
Maximum Label and Liner Length 4.25 (108 mm
Maximum Label and Liner Width 1.00 (25.4 mm)
Maximum Media Roll Size 5 (127 mm)
Media Thickness 0.003 (.08 mm) to 0.007 (0.18 mm
Media Types Roll or fanfold, tag stock
Ribbon Characteristics Outside diameter 1.34 (34 mm) Standard length 244 (74 m) Ratio 1:1 Ribbon width Recommended to be at least as wide as media 1.33 (33.8 mm) to 4.3 (110 mm) ID Core 0.5 (12.7 mm)
Operating Characteristics
Agency Approvals TUV-R NRTL TUV-R CB NOM KCC CE FCC Class-B
Electrical Auto-detecting (PFC compliant) 100-240 VAC, 50-60 Hz
Environmental Operating temperature TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct therma Storage temperatures -40° F (-40° C) to 140° F (60° C) Operating humidity 10-90% non-condensing R.H. Storage humidity 5-95% non-condensing R.H
Physical Characteristics Width 7.9 (201 mm) Height 6.8 (173 mm) Depth 9.4 (239 mm) Weight 3.2 lbs (1.5 kg) Orientation Center
ZebraLink™ Solutions

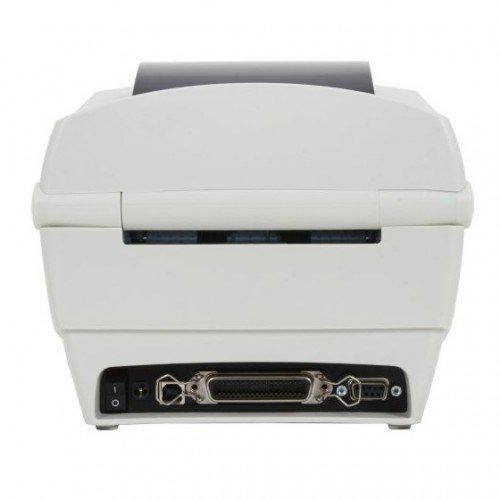

Communication and Interface Capabilities Serial RS-232 (DB9) Parallel (Centronics))
Firmware EPL2™ • EPL Line Mode (direct thermal only) • ZPL II® • Web View • Alert • ZBI™
Networking and Connectivity Ethernet - 10/100 internal (optional)
Software • ZebraDesigner™ Pro • ZebraDesigner • ZebraNet™ Bridge Enterprise • ZebraNet Utilities v7.0 • ZebraDesigner Windows® Driver • ZBI-Developer™ • POS Driver
Fonts/Graphics/Symbologies
Barcode Symbologies RECENTLY VIEWED PRODUCTS RZ400 Media Adapter Guide - 4-inch Desktop Printers QL Series, RW Series, P4T/RP4T UK Li-Ion Fast Charger Home > Printers (Asia and Latin America Only) > GC420t GC420t STANDARD FEATURES Print method: direct thermal/thermal transfer EPL and ZPL programming languages standard 32 bit RISC processor Quick and easy ribbon loading system Construction: ABS double-walled casing OpenACCESS™ design PRINTER SPECIFICATIONS Resolution 203 dpi (8 dots/mm) Memory Standard: 8 MB SDRAM; 8 MB Flash Print width 4.09 (104 mm) maximum Print length 39” (991 mm) maximum Print speed 4 (102 mm)/sec Media sensors Reflective Transmissive MEDIA CHARACTERISTICS Maximum label and liner width 4.25 (108 mm) Minimum label and liner width 1.00 (25.4 mm) Maximum label and liner length 39 (991 mm) Maximum roll diameter 5 (127 mm) Core diameter 1.0 (25.4 mm) and 1.5 (38 mm) Media thickness 0.003 (.08 mm) to 0.007 (0.18 mm) Media types Roll or fanfold, tag stock RIBBON CHARACTERISTICS Outside diameter 1.34 (34 mm) Standard length 244 (74 m) Ratio 1:1 Ribbon width Recommended to be at least as wide as media 1.33 (33.8 mm) to 4.3 (110 mm) ID Core 0.5 (12.7 mm) OPERATING CHARACTERISTICS Operating temperature TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal Storage temperatures -40° F (-40° C) to 140° F (60° C) Operating humidity 10-90% non-condensing R.H. Storage humidity 5-95% non-condensing R.H. Electrical Auto-detecting (PFC compliant) 100-240 VAC, 50-60 Hz Agency approvals TUV-R NRTL TUV-R CB NOM KCC CE FCC Class-B PHYSICAL CHARACTERISTICS Width 7.9 (201 mm) Height 6.8 (173 mm) Depth 9.4 (239 mm) Weight 3.2 lbs (1.5 kg) Orientation Center RELATED PRODUCTS Options Dispenser with label taken sensor Communication and Interface Capabilities Serial RS-232 (DB9) Parallel (Centronics) PROGRAMMING LANGUAGES Core programming languages EPL2, ZPL I/ZPL II BAR CODES/SYMBOLOGIES Linear Code 39 Code 11 Code 93 Code 128 with subsets A/B/C UPC-A and UPC-E with 2 or 5 digit extensions EAN-13 EAN-8 EAN-8 and EAN-13 with 2 or 5 digit extensions Postnet Plessey Japanese Postnet MSI-3 German Post Code RSS-14 (limited, truncated, stacked) UCC/EAN-128 Codabar Interleaved 2-of-5 UPC-A UPC-E Industrial 2-of-5 Logmars Code 128 EAN-14 MSI RSS (reduced space symbology) Standard 2-of-5 UPC and EAN 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions 2-dimensional MaxiCode PDF417 MicroPDF417 MacroPDF417 Data Matrix Aztec Codablock Code 49 QR Code RSS / GS1 DataBar family (12 barcodes
Fonts and Character Sets 16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
File Name Link
GC420_Datasheet Download
