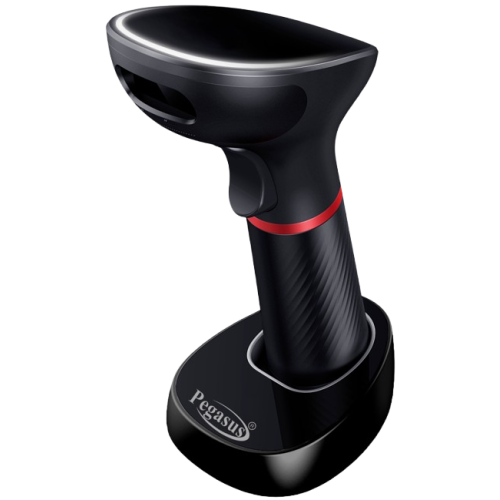

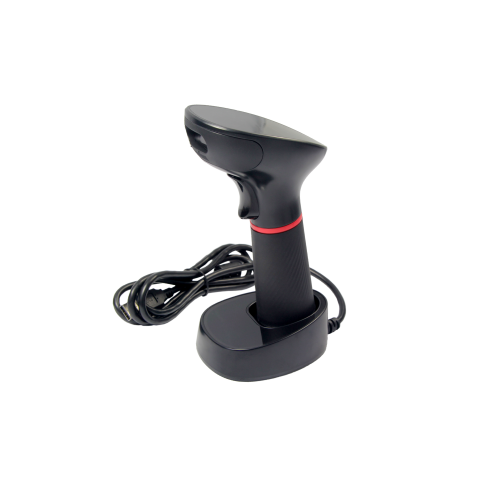

"PS5260X – Built to Perform. Designed to Last."


       Key Highlights:

  • Advanced 2D Wireless Barcode Scanner supporting both 1D and 2D codes.

  • Massive Memory Capacity: Stores up to 100,000 EAN-13 barcodes.

  • Ultra-Long Battery Life: One full charge delivers up to 60,000 scans.

  • High-Capacity Battery: Built-in 2600mAh rechargeable lithium battery.

  • Dual Wireless Connectivity:

    • 2.4G wireless (range up to 150 meters)

    • Bluetooth (range up to 10 meters)

  • Effortless Updates: Online firmware upgrade support.

  • Excellent Read Accuracy: Reads damaged, stained, colored, and low-contrast barcodes with ease.

  • Versatile Use Cases: Ideal for retail, warehouse, logistics, healthcare, and industrial scanning needs.

     Technical Specifications:

         Decoding & Performance:

  • Sensor Type: CMOS

  • Processor: 32-bit ARM

  • Image Resolution: 640 × 480 pixels

  • Minimum Resolution: ≥ 3 mil

  • Scanning Depth: 60–360 mm (on 13mil/90% PCS)

  • Scan Speed: 60 frames per second

  • Scan Angle:

    • Rotation: 360°

    • Tilt: 65°

    • Skew: 60°

  • Light Source: White LED (illumination), Red LED (aiming)

    Supported Barcode Formats:

  • 1D Barcodes: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Matrix 2 of 5, Code93, Code128, UPC-A, UPC-E, EAN-8, EAN-13, GS1 DataBar, and more.

  • 2D Barcodes: QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, Aztec Code.


Connectivity & Charging:

  • Wireless Communication:

    • 2.4G (150M range)

    • Bluetooth (10M range)

  • Interface: USB (USB-VCP)

  • Charging Options:

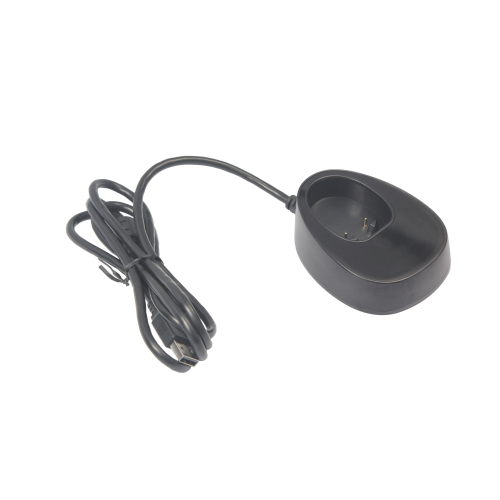

    • Contact charging via base

    • Micro USB cable

  • Cable: 1.6m straight USB cable


= Battery & Power:

  • Battery Type: Rechargeable 2600mAh lithium

  • Battery Life: Up to 16 hours of continuous scanning

  • Standby Time: Up to 6 months (dormant mode)

  • Input Voltage: DC 5V

  • Working Current: 250mA

  • Standby Current: <1μA


Build & Environment:

  • Material: Durable ABS + TPU

  • Scanner Dimensions: 163 × 68 × 80 mm

  • Charging Base Dimensions: 92 × 73 × 35 mm

  • Weight:

    • Scanner: 185g

    • Charging Base: 220g

  • Operating Temperature: -10°C to 50°C

  • Storage Temperature: -20°C to 60°C

  • Humidity: 5% to 95% RH (non-condensing)

  • Ambient Light Tolerance:

    • Fluorescent: up to 5000 Lux

    • Sunlight: up to 100,000 Lux


 Scan Modes & Indicators:

  • Modes: Manual trigger & automatic induction

  • Indicators: LED light ring and buzzer feedback
