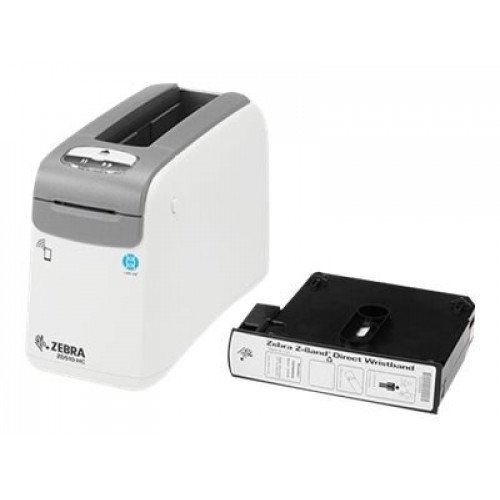

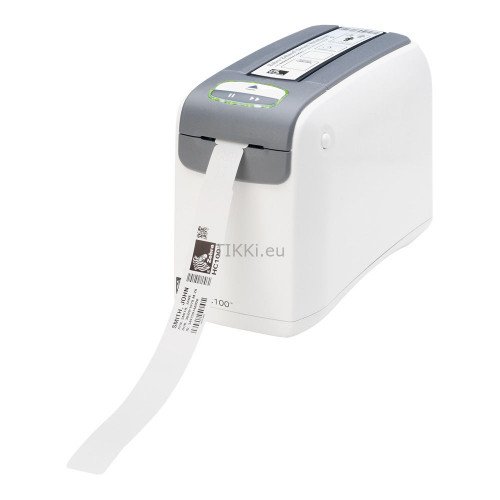

Zebra's ZD510-HC Wristband Printing Solution allows you to trust your wristband printing to a specialist. The ZD510-HC combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges, containing only antimicrobial-coated wristbands on the market, Zebra's Z-Band wristbands. ZD510-HC printers are easy to integrate, manage and secure, thanks to Zebra's Link-OS operating system and Zebra's powerful Print DNA suite of applications, utilities and developer tools. The ZD510-HC comes standard with Ethernet, USB, USB Host, and Bluetooth Low Energy. The optional dual wireless radio offers 802.11ac and latest security protocols, plus Bluetooth 4.1 with concurrent wired and wireless communications. The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The smart chip in each cartridge allows automatic collaboration.


  • Quick and easy wristband cartridge loading
  • Automatic print speed setting-up to 4 ips depending on installed cartridge
  • Direct thermal printing of barcodes, text and graphics
  • Dual-wall frame, impact-resistant plastic
  • ZPL® or ZPL II® programming language
  • 512 MB Flash memory
  • 256 MB SDRAM memory
  • Element Energy Equalizer™ (E3™) for superior print quality
  • Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy
  • Odometer for print-length tracking
  • Illuminated media low/media out indicator
  • Tool-less printhead and platen replacement
  • Unicode™-compliant for multi-language printing
  • Instant media calibration — no wasted media
  • Head-up sensor
  • XML-enabled printing — allows XML communications from information systems
  • ENERGY STAR® qualified
  • Link-OS
  • Real Time Clock


·         Maximum Print Length : 22 in./558 mm

·         Minimum Print Length 3 in./76 mm

·         Print Widths 0.75 in./19.05 mm, 1 in./25.4 mm, 1.1875 in./30.16 mm

·         Resolution 300 dpi/12 dots per mm

·         Maximum Print Speed Healthcare: 2 in./51 mm per second Z-Band Fun and Z-Band Splash: 4 in./102 mm per second



 Zebra offers a comprehensive range of wristband solutions for healthcare and hospitality industries.

Healthcare Wristbands

• Adhesive or clip closure

• Adult, child and infant sizes

• Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay

Hospitality Wristbands

 • One-day and multi-day wristband options

 • Seven bright colors

• Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts

• Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud

File Name Link
ZD510-HC Wristband Printing Solution Spec Sheet Download
