ELITE8500-KDS

High-Performance Kitchen Display System (KDS) – Fanless, Durable, and Touch-Enabled

The ELITE8500-KDS is a next-generation Kitchen Display System purpose-built for restaurant kitchens, QSRs, digital signage, and customer-facing touch applications. Designed for reliability in high-heat and high-demand environments, the ELITE8500-KDS offers powerful performance, responsive touch, and commercial-grade durability—making it a perfect choice for modern hospitality and retail operations.

Powerful, Fanless Processing Options

Available with multiple Intel® processor options to suit varying workloads:

• Intel® Celeron® J4125 – energy efficient, ideal for standard operations

Fanless design ensures quiet, dust-resistant operation, which is critical in hot kitchen environments and 24/7 use scenarios.

Fast Memory and SSD Storage

• Memory: Up to 8GB RAM (Default: 4GB)

• Storage: High-speed mSATA SSD available in 64GB, 128GB, or 256GB (Default: 64GB)

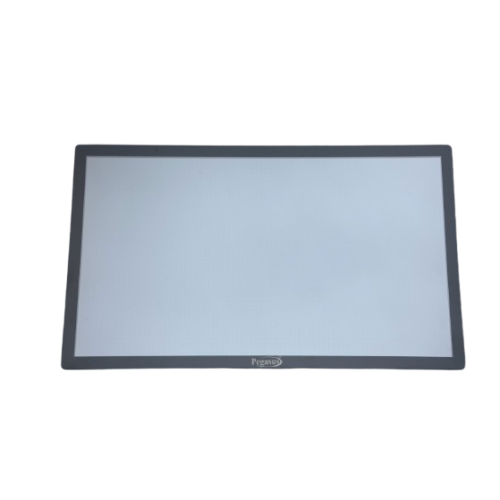

Stunning Display with Multi-Touch

• Display Sizes:

  • 17.3” or 21.5” Full HD TFT LCD with LED backlight

• Resolution: 1920 × 1080 Full HD

• Brightness: 300–350 nits for excellent visibility

• Touch Technology: 10-point Projected Capacitive true flat touchscreen for fluid and responsive interaction

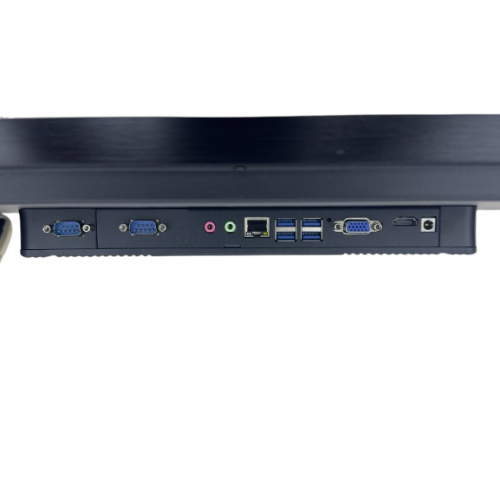

Rich Connectivity Interface

Connect to a wide range of POS peripherals, back-office systems, and kitchen equipment:

• USB Ports: 4 × USB 2.0 and 2 × USB 3.0

• COM Ports: 2

• LAN: 1 × RJ45 Ethernet port

• VGA: 1

• PS/2 & DC-IN

• Power Button: 1

Power Supply & Operating System

• Power: External 60W / 12V power adapter with lock connector

• OS Support:

  • Windows 7, Windows 8, Windows 10

  • Preloaded with Windows 10 IoT Enterprise LTSB (trial version)

Premium Build Quality & Design

• Material: Full Aluminum Alloy chassis for durability and heat resistance

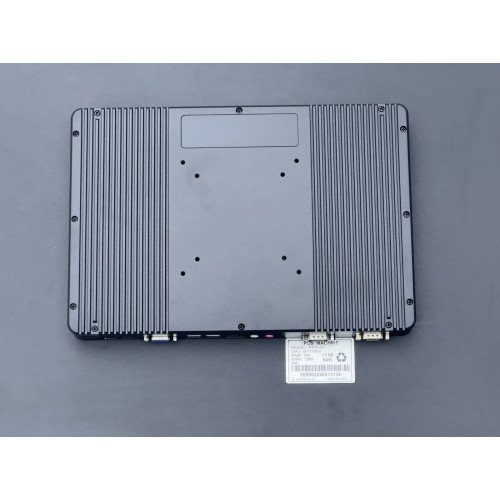

• Mounting: Wall-mountable via 75×75mm VESA

• Colors Available: Sleek black finish

Dimensions & Weight

• 17.3” Model: 418 × 266 × 53 mm – Net weight: 4.6 kg

• 21.5” Model: 530 × 325 × 53 mm – Net weight: 6.0 kg

Optional Built-in Features

• WiFi

• Bluetooth

• Internal speakers

Perfect for wireless kitchen display integration and multimedia alerts.

Environmental Specifications

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -15°C to 60°C

• Cooling System: Passive (fanless)

Certifications

• CE

• FCC

• RoHS

Ideal Use Cases

• Restaurant Kitchen Display System (KDS)

• Queue Management & Customer Display Panels

• Self-ordering kiosks in retail and F&B

• Digital signage in commercial environments
